How to connect chargers to a charging location and create QR codes

This guide explains how to connect chargers to a charging location and create QR codes in the Smart Fuel Pass portal.

1. Open Charging location management (PoS Manager), then Chargers and select Add new charger.
2. Enter the charger details requested by the portal and save the new charger.
3. In the charger's own administration, enter the technical communication address and the station or charger identifier shown in the portal. Installers may know this connection as OCPP; follow the charger manufacturer's instructions.
4. After the charger is connected, create a QR code for the connector if you want drivers to start charging by scanning it.
5. Before opening the location to drivers, test the connection and a charging session.

Important: The technical communication address and charger identifier are configuration details for the charger or its installer. Do not share portal credentials with a third party. If the charger does not connect, send support the charging-location name, charger model and identifier, and the exact error message.

Portal labels may differ slightly by language or after future product updates.

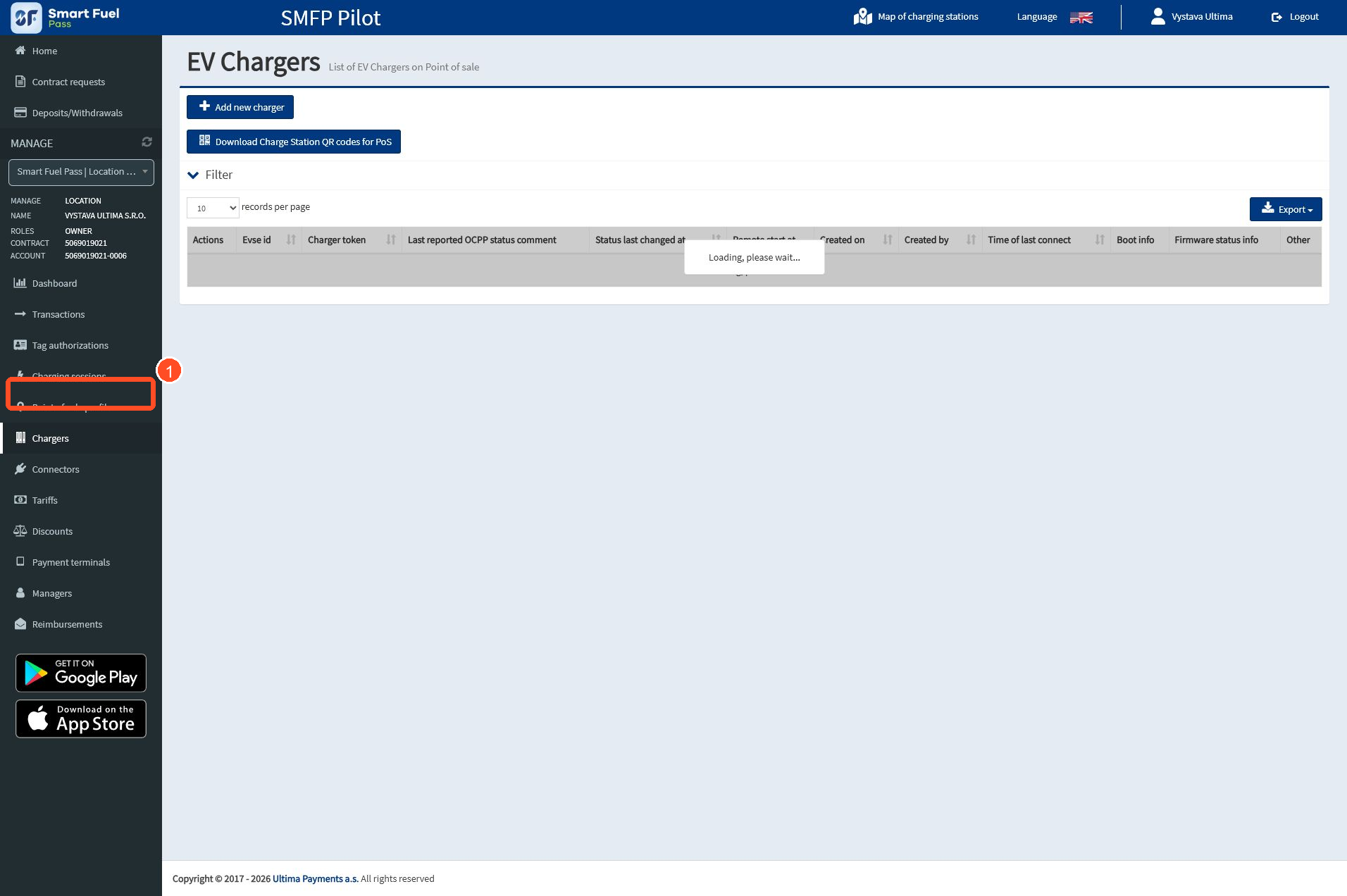

Portal example

Illustrative screenshot from the Smart Fuel Pass test portal. Values and labels may differ in your account.
